OLED Equipment
Cluster Type

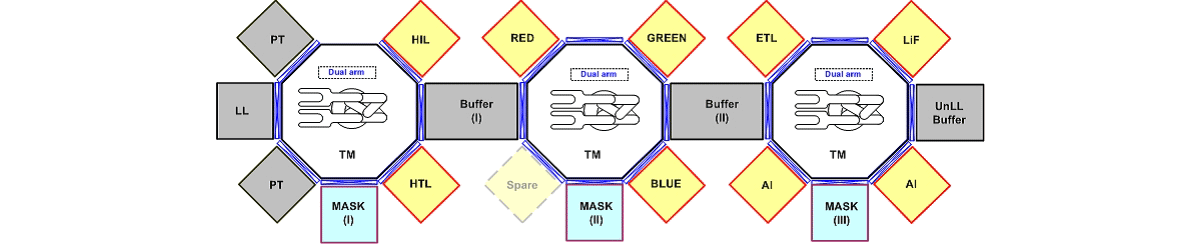

Centered on the TM (Transfer Module), it places each PM (Process Module, process chamber - chamber for functional films such as electron layer, organic matter layer, etc.) to constitute distribution by a vacuum robot.
- Core Technology
- Substrate transfer distribution technology between TM ↔ PM depending on the order of evaporation process
- Formation of precise evaporation patterns and Auto Aligner technology
- Development of plate deflection prevention technology and Auto Feeding System (continuous evaporation possible for an extended period of time)
- Development of Plasma Treatment Technology
-
Large-Sized Cluster Type Evaporation Equipment SystemSUNICEL Plus 1850
- For 6GH 925 * 1500 panel equipment system
- For high-resolution mobile product
- For smartphone and flexible display
- Primary clients: AMOLED panel manufacturers
-
Medium-Sized Cluster Type Evaporation Equipment SystemSUNICEL Plus 700
- For 45GH 730 * 470 panel equipment system
- For AMOLED panel pilot production and development
- Primary clients: AMOLED panel manufacturers
-
Medium-Sized Cluster Type Evaporation Equipment SystemSUNICEL Plus 400
- For 2GH 370 * 470 panel equipment system
- For AMOLED panel pilot production and development
- For mass production of PMOLED panels
- Primary clients: AMOLED and PMOLED panel manufacturers
-
Small-Sized Cluster Type Evaporation Equipment SystemSUNICEL Plus 200
- For 1GH 200 * 200 material evaluation and QC
- For material development and verification
- For device product development and research
- Primary clients: AMOLED panel manufacturers, domestic and international OLED materials
OLED Equipment
Inline Type

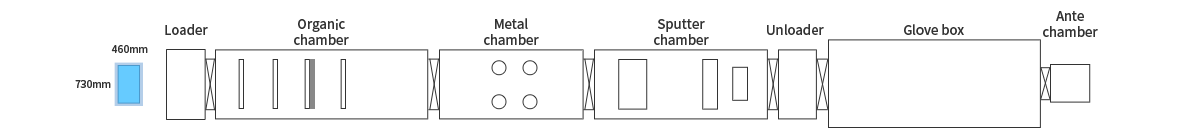

Evaporation device with high productivity and efficiency, used in manufacturing large-sized OLED panels based on OLED and W-OLED for lighting
Applying an inline distribution method through a rail system for high productivity, upward evaporation method equipped with linear source
Characterized by the linear structure, which differs from the cluster type
- Core Technology
- Enable to evaporate various organic materials through the linear vaporization source evaporation method (linear source for evaporation of organic matter)
- Possible to evaporate inorganic matter through the point vaporization source arrangement method (point source for evaporation of metal)
-
Medium-Sized Inline Type Evaporation Equipment SystemSUNICEL Plus 400L
- For 2GH 370 * 470 panel equipment system
- For OLED lighting development and mass production
- For WOLED device development
- Primary clients: Domestic and international lighting panel manufacturers
-
Small-Sized Inline Type Evaporation Equipment SystemSUNICEL Plus 200L
- For 1GH 200 * 200 panel equipment system
- For OLED lighting development
- For WOLED device development
- Primary clients: Research institutes and light panel manufacturers
